2023 ROCKY MOUNTAIN Fusion Powerplay 10 29 MD - MB0234-8456

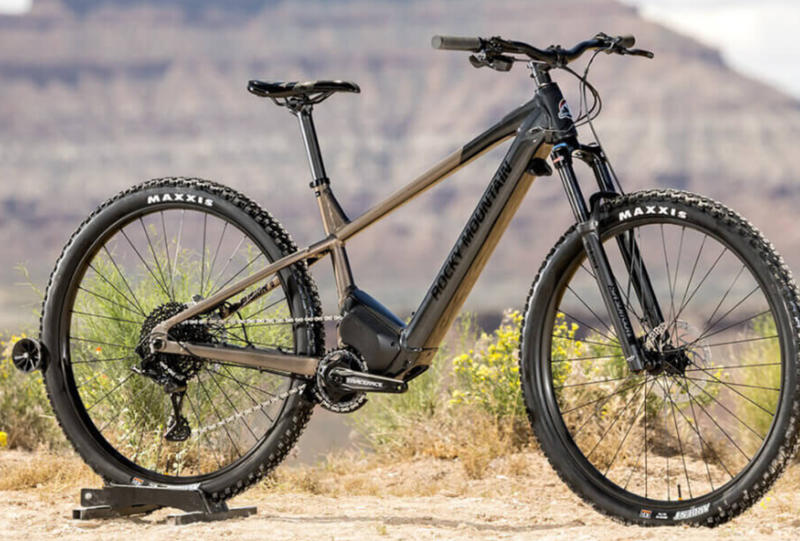

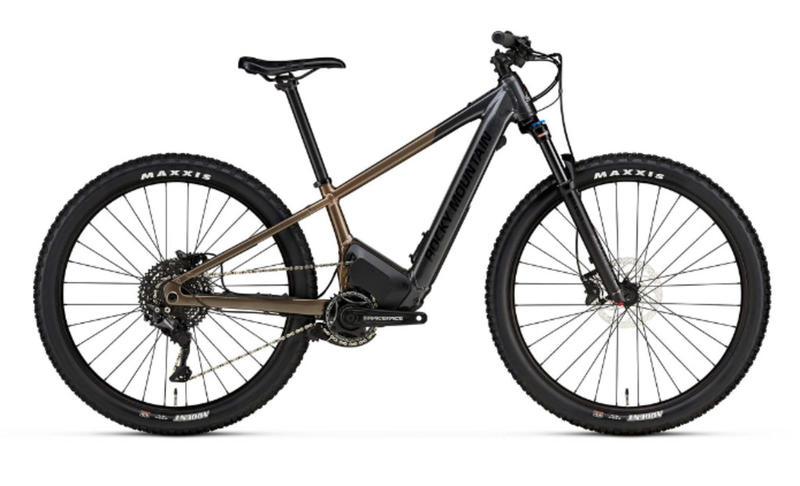

2023 Rocky Mountain Fusion Powerplay 10 29 MD

By combining the power of our Dyname™ 4.0 drive system and the all around user friendliness of the Fusion, the Fusion Powerplay opens up a new world of exploration, from trails to the city. Stability, comfort, safety and ease of use are the names of the game here.

Specifications

Condition NEW

Stock Number MB0234-8456

Year 2023

Make Rocky Mountain

Model Fusion Powerplay 10 29 MD

Vehicle Type Bicycle

Category Electric

VIN SRMK2208456

Color BN/GY

Manufacturer Info

Dimensions

Dimensions Wheel Size: 29" | Top Tube Horizontal: 627.79 mm | Head Tube Angle: 66.5° | Seat Tube Angle: 74.5° | Rear Centre: 450 mm | Bottom Bracket Drop: 60 mm | Reach: 450 mm | Stack: 641.08 mm

Length Head tube: 110 mm | Seat Tube: 420 mm

Height Standover: 795 mm

Wheelbase 1199 mm

Battery

Battery 480 Wh Removable Integrated Li-Ion | 100% Charged in 2:35 (4A) / 5:05 (2A) | 80% Charged in 1:55 (4A) / 4:00 (2A)

Battery Charger Type Rocky Mountain Powerplay Charger | 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)

Drivetrain

Drive System Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada

Drivetrain Rear Derailleur: Shimano Deore 10spd | Bottom Bracket: Shimano SM-BBMT500

Gear Shifter Shimano Deore 10spd

Bicycle Crank Race Face Ride Cinch 34T | 24mm Spindle | Crank Length: 165mm

Sprockets, Rear Cassette: Sunrace CSMS2 11-46T

Chain Type KMC X10-1

Chassis

Frame Type FORM™ Alloy | Press Fit BB | Internal Cable Routing | Boost 148mm | Tapered Zerostack Headtube | Dropper Post Compatible. Rear Triangle

Fork Suntour XCR32 AIR LOR DS Boost 120mm 46mm Offset

Handlebars Rocky Mountain XC | 760mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

Handlebar Grips Rocky Mountain Lock On Light

Suspension Front Travel (in./cm.) 120mm

Brakes

Brake System Type Shimano MT4100 2 Piston | Resin Pads

Front braking system Shimano RT30 180mm

Rear braking system Shimano RT30 180mm

Wheels & Tires

Wheels Spokes: 2.0 Stainless | Rims: Rocky Mountain TR30 Tubeless | 32H | Tubeless Compatible - Tape / Valves / Sealant Not Incl

Front Tire Maxxis Ardent 2.4 EXO

Rear Tire Maxxis Ardent 2.4 EXO

Features

Features Headset: FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race | Stem: Rocky Mountain 31.8 XC | 7° Rise | All Sizes = 50mm | Saddle: WTB Volt 142 | Remote: Rocky Mountain Micro Remote

Hub Type Front: Shimano MT410 | 15mm Boost | Rear: Shimano MT400 Boost 148mm

Seat Type Seatpost: Rocky Mountain 30.9mm

Instrumentation Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
